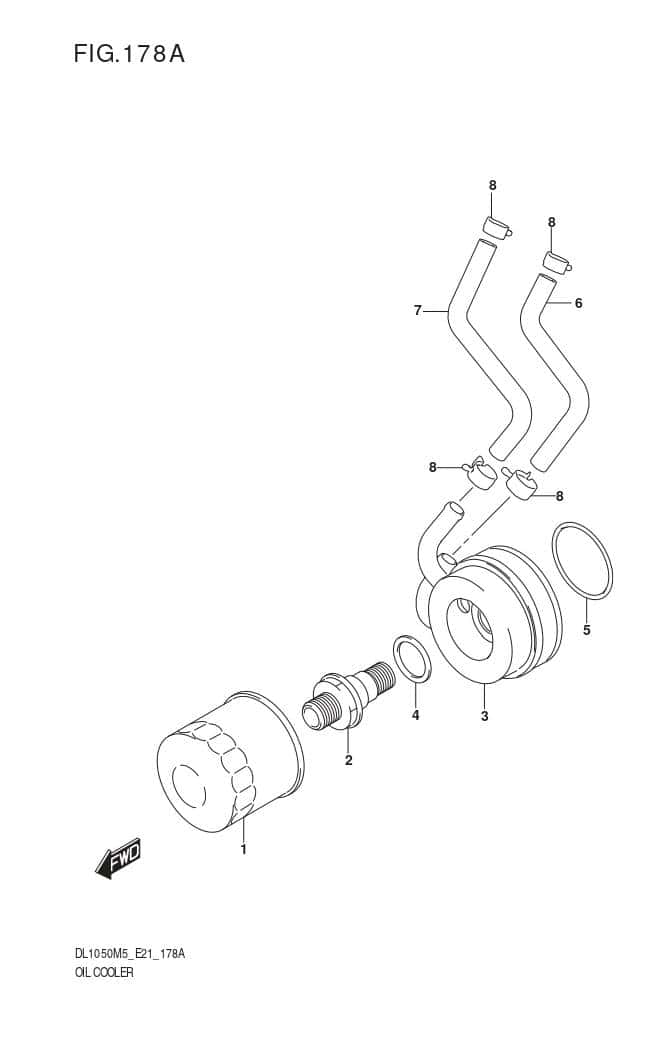

V-STROM 1050DE - FIG.178A (1-C-6) OIL COOLER - Suzuki Motorcycles Philippines

FIG.101A (1-B-2) GASKET SET
FIG.104A (1-B-3) CYLINDER HEAD (FRONT) (DL1050RR)
FIG.105A (1-B-5) CYLINDER HEAD (REAR)
FIG.107A (1-B-6) CYLINDER
FIG.108A (1-B-7) CRANKCASE
FIG.109A (1-B-8) CRANKCASE (2) (DL1050RR)
FIG.109B (1-B-9) CRANKCASE (2) (DL1050RJ)
FIG.112A (1-B-10) CRANKCASE COVER
FIG.120A (1-B-11) CRANKSHAFT
FIG.122A (1-B-12) STARTER CLUTCH
FIG.126A (1-B-13) CAMSHAFT/VALVE
FIG.127A (1-B-15) CAM CHAIN
FIG.155A (1-C-2) AIR CLEANER
FIG.163B (1-C-3) MUFFLER
FIG.170A (1-C-4) OIL PUMP
FIG.178A (1-C-6) OIL COOLER
FIG.180A (1-C-7) WATER PUMP
FIG.185A (1-C-8) RADIATOR
FIG.187A (1-C-9) RADIATOR HOSE
FIG.189A (1-C-10) 2ND AIR

Ref No.	Part Number	Part Name	QTY	Price
1	16510-07J00	FILTER ASSY,ENGINE OIL (P1.0)	1	₱ 739
2	16591-06L00	BOLT,OIL COOLER UNION	1	₱ 924
3	16600-06L00	COOLER ASSY,OIL	1	₱ 20,773
4	09181-21002	SHIM (21X31X0.8)	1	₱ 88
5	16611-48K00	O-RING,OIL COOLER	1
6	16461-06L00	HOSE,OIL COOLER WATER INLET	1	₱ 641
7	16471-06L00	HOSE,OIL COOLER WATER OUTLET	1	₱ 655
8	09401-16407	CLIP (ID:16.5)	4
