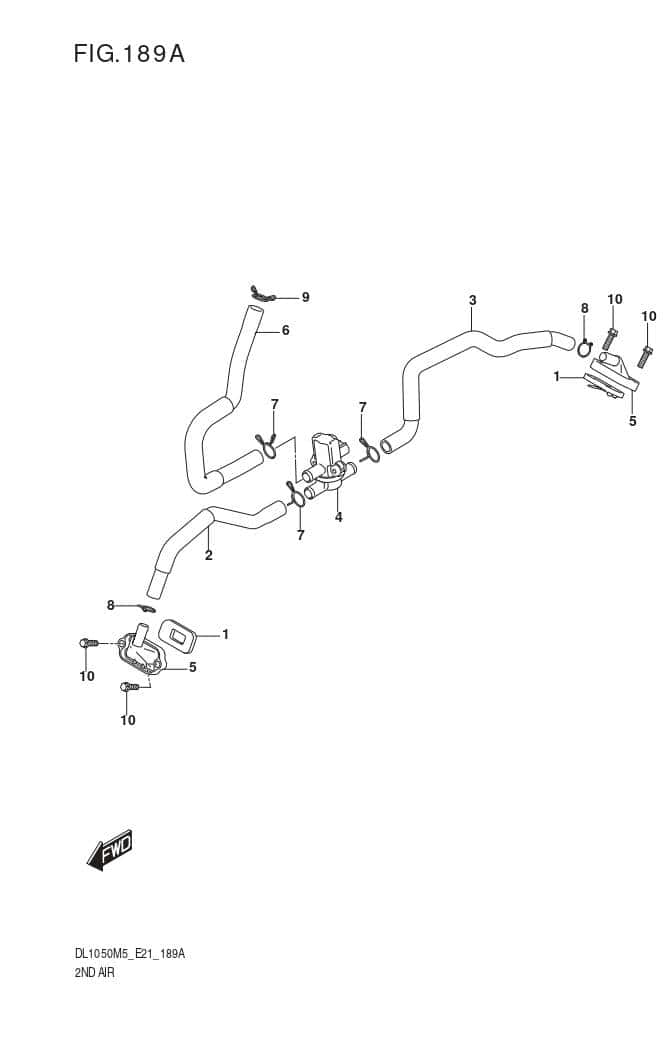

FIG.189A (1-C-10) 2ND AIR

Ref No.	Part Number	Part Name	QTY	Price
1	18450-28K00	VALVE ASSY,2ND AIR REED	2	₱ 1,225
2	18461-06L00	HOSE,2ND AIR VALVE FR	1	₱ 662
3	18471-06L00	HOSE,2ND AIR VALVE RR	1	₱ 794
4	18510-29G31	VALVE ASSY,AIR CUT	1	₱ 2,749
5	18531-06G01	COVER,2ND AIR	2	₱ 396
6	18711-06L00	HOSE,2ND AIR CLNR	1	₱ 761
7	09401-18101	CLIP	3	₱ 76
8	09401-15101	CLIP (ID:15.5)	2	₱ 74
9	09401-17201	CLIP	1	₱ 104
10	01547-0620A	BOLT	4	₱ 26
