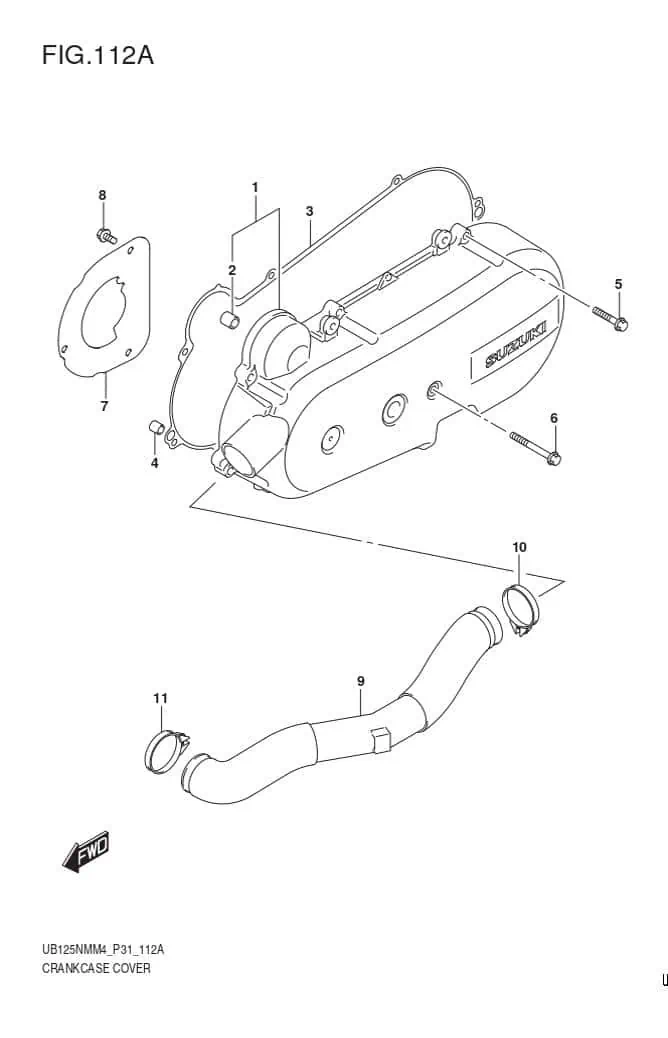

Burgman Street - Crankcase Cover - Fig. 112A (1-B-6)

Genuine Parts

FIG.102A (1-B-2) CYLINDER HEAD COVER
FIG.103A (1-B-3) CYLINDER HEAD
FIG.107A (1-B-4) CYLINDER
FIG.108A (1-B-5) CRANKCASE
FIG.112A (1-B-6) CRANKCASE COVER
FIG.120A (1-B-7) CRANKSHAFT
FIG.155A (1-B-11) AIR CLEANER
FIG.170A (1-B-13) OIL PUMP
FIG.181A (1-C-2) COOLING FAN
FIG.420A (1-D-7) FUEL TANK
FIG.127A (1-B-9) CAM CHAIN
FIG.140A (1-B-10) THROTTLE BODY
FIG.163A (1-B-12) MUFFLER
FIG.126A (1-B-8) CAMSHAFT/VALVE

Ref No.	Part Number	Part Name	QTY	Price
1	11340-08K40-000	COVER, CLUTCH	1	₱ 4,785
2	11325-09J00-000	.BUSH	1	₱ 44
3	11482-08K00-000	GASKET, CLUTCH COVER (NA)	1	₱ 198
4	09206-08008-000	PIN (6.3X8X12)	2	₱ 32
5	01547-06258-000	BOLT	8
6	01547-0690A-000	BOLT	1	₱ 43
7	11346-08K00-000	PLATE, CLUTCH COVER AIR INTAKE	1	₱ 114
8	01547-0612A-000	BOLT	3
9	11383-39J10-000	DUCT, BELT COOLING INLET	1	₱ 371
10	09402-46209-000	CLAMP	1	₱ 118
11	09402-42001-000	CLAMP	1	₱ 80
