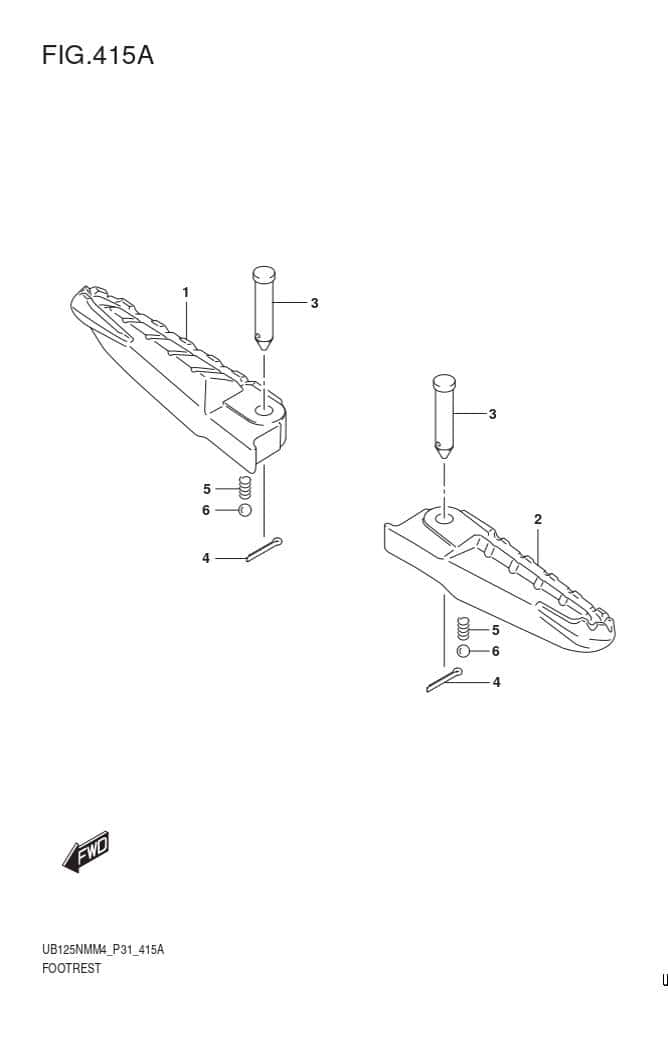

Ref No.	Part Number	Part Name	QTY	Price
1	43611-44K00-000	BAR, PILLION FOOTREST RH	1
2	43621-44K00-000	BAR, PILLION FOOTREST LH	1
3	09200-08077-000	PIN	2	₱ 34
4	04111-2515A-000	PIN	2	₱ 39
5	09440-05003-000	SPRING	2	₱ 33
6	06111-07004-000	BALL	2
