Burgman Street - Front Turnsignal Lamp - Fig. 336A (1-C-12)

FIG.172A (1-B-14) FUEL PUMP
FIG.310A (1-C-8) BATTERY
FIG.303A (1-C-7) MAGNETO
FIG.301A (1-C-6) STARTING MOTOR
FIG.312A (1-C-9) ELECTRICAL
FIG.330A (1-C-10) SPEEDOMETER
FIG.333A (1-C-11) HEADLAMP

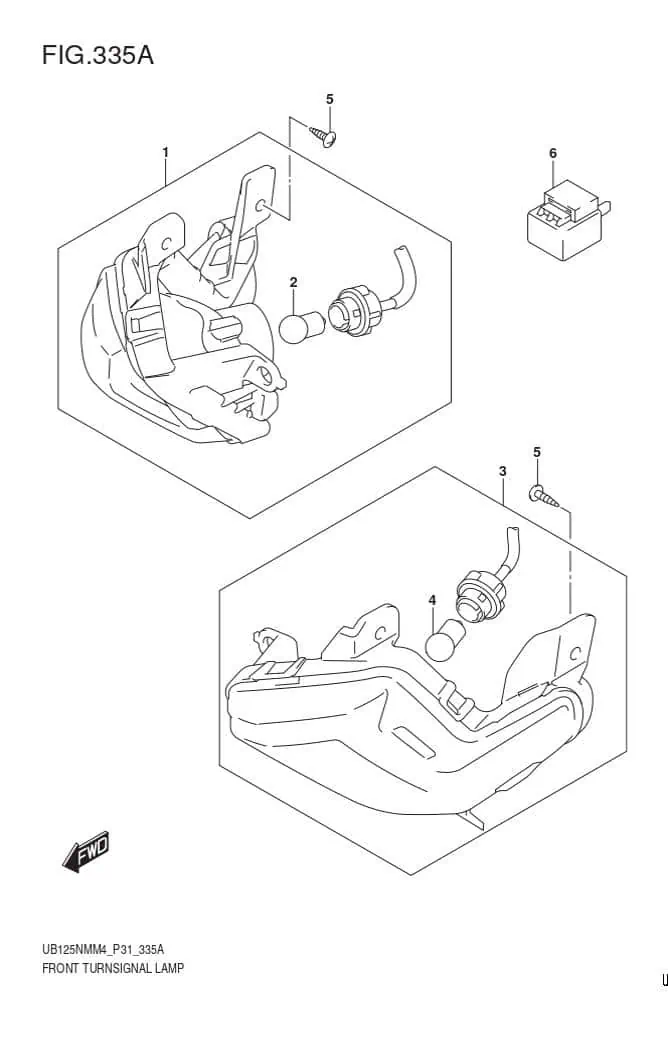

FIG.335A (1-C-12) FRONT TURNSIGNAL LAMP
FIG.339A (1-C-13) REAR COMBINATION LAMP
FIG.352A (1-D-2) LOCK SET
FIG.350A (1-C-14) WIRING HARNESS

Ref No.	Part Number	Part Name	QTY	Price
1	35601-44KA0-000	LAMP ASSY, FRONT TURNSIGNAL RH	1	₱ 979
2	09471-12226-000	.BULB (12V10W,AMBER)	1	₱ 194
3	35602-44KA0-000	LAMP ASSY, FRONT TURNSIGNAL LH	1	₱ 979
4	09471-12226-000	.BULB (12V10W,AMBER)	1	₱ 194
5	03541-0516A-000	SCREW	4	₱ 48
6.1	38610-23J10-000	RELAY ASSY, TURNSIGNAL	1
6.1	38610-27K00-000	RELAY ASSY, TURNSIGNAL	1	₱ 367
