Burgman Street - FIG.401A (1-D-3) FRAME - Suzuki Motorcycles Philippines

FIG.405A (1-D-4) BATTERY HOLDER

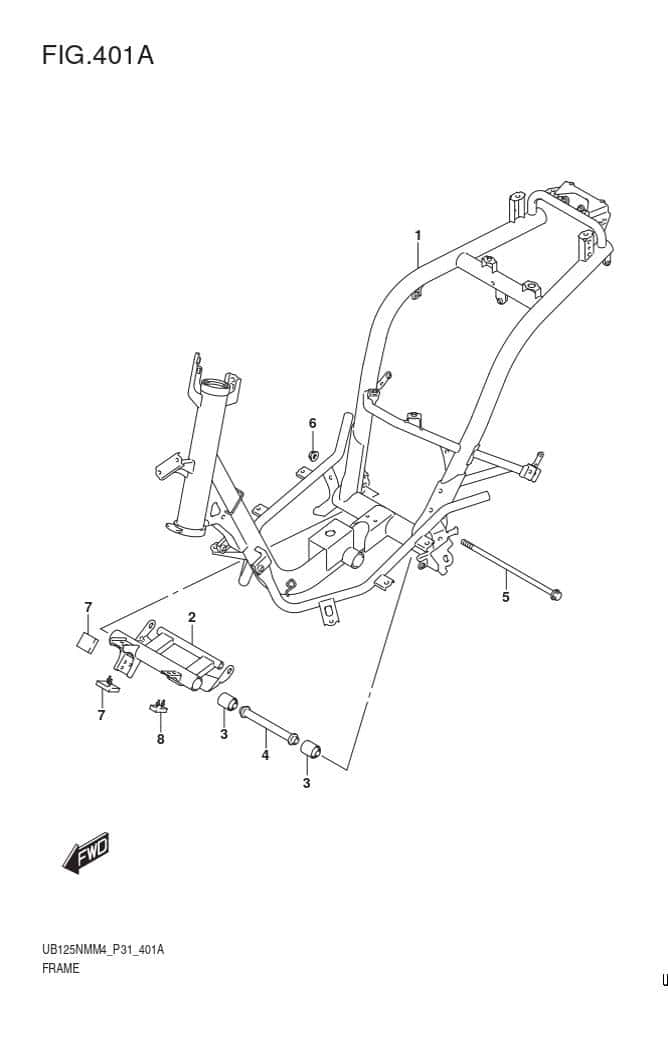

FIG.401A (1-D-3) FRAME
FIG.407A (1-D-5) STAND
FIG.415A (1-D-6) FOOTREST
FIG.438A (1-D-10) SIDE LEG SHIELD
FIG.440A (1-D-11) REAR LEG SHIELD
FIG.456A (1-D-14) HELMET BOX
FIG.454A (1-D-13) WINDSCREEN
FIG.427A (1-D-8) EVAP SYSTEM
FIG.435B (1-D-4) FRONT LEG SHIELD
FIG.445A (1-D-12) FRAME COVER
FIG.505A (1-E-9) SEAT
FIG.524A (1-E-11) STEERING STEM
FIG.530A (1-E-12) FRONT WHEEL
FIG.535A (1-E-13) FRONT CALIPER
FIG.537A (1-E-14) FRONT MASTER CYLINDER
FIG.545A (1-F-2) REAR SHOCK ABSORBER
FIG.550A (1-F-3) REAR WHEEL
FIG.460A (1-E-2) FRONT FENDER
FIG.463A (1-E-4) HANDLE COVER
FIG.467A (1-E-5) HANDLE LEVER
FIG.496A (1-E-8) LABEL

Ref No.	Part Number	Part Name	QTY	Price
1	41100-44K51-000	Frame	1	₱ 16,387
2	41180-02L00-000	BRACKET, CRANKCASE	1	₱ 1,707
3	41184-39J00-000	BUSH, CRANKCASE BRKT	2	₱ 186
4	41170-09J10-000	SPACER, CRANKCASE BRKT	1	₱ 214
5	41189-39J00-000	BOLT, CRANKCASE BRKT (10X255)	1	₱ 273
6	08319-3110A-000	NUT	1	₱ 42
7	41185-09J00-000	CUSHION	2
8	41185-08K00-000	CUSHION, SWING STOP	1	₱ 42
