Burgman Street - Stand - Fig.407A (1-D-5) - Suzuki Motorcycles Philippines

Genuine Parts

FIG.102A (1-B-2) CYLINDER HEAD COVER
FIG.103A (1-B-3) CYLINDER HEAD
FIG.107A (1-B-4) CYLINDER
FIG.108A (1-B-5) CRANKCASE
FIG.112A (1-B-6) CRANKCASE COVER
FIG.120A (1-B-7) CRANKSHAFT
FIG.155A (1-B-11) AIR CLEANER
FIG.170A (1-B-13) OIL PUMP
FIG.181A (1-C-2) COOLING FAN
FIG.420A (1-D-7) FUEL TANK
FIG.127A (1-B-9) CAM CHAIN
FIG.140A (1-B-10) THROTTLE BODY
FIG.163A (1-B-12) MUFFLER
FIG.126A (1-B-8) CAMSHAFT/VALVE

FIG.172A (1-B-14) FUEL PUMP
FIG.310A (1-C-8) BATTERY
FIG.303A (1-C-7) MAGNETO
FIG.301A (1-C-6) STARTING MOTOR
FIG.312A (1-C-9) ELECTRICAL
FIG.330A (1-C-10) SPEEDOMETER
FIG.333A (1-C-11) HEADLAMP
FIG.335A (1-C-12) FRONT TURNSIGNAL LAMP
FIG.339A (1-C-13) REAR COMBINATION LAMP
FIG.352A (1-D-2) LOCK SET
FIG.350A (1-C-14) WIRING HARNESS

FIG.405A (1-D-4) BATTERY HOLDER
FIG.401A (1-D-3) FRAME

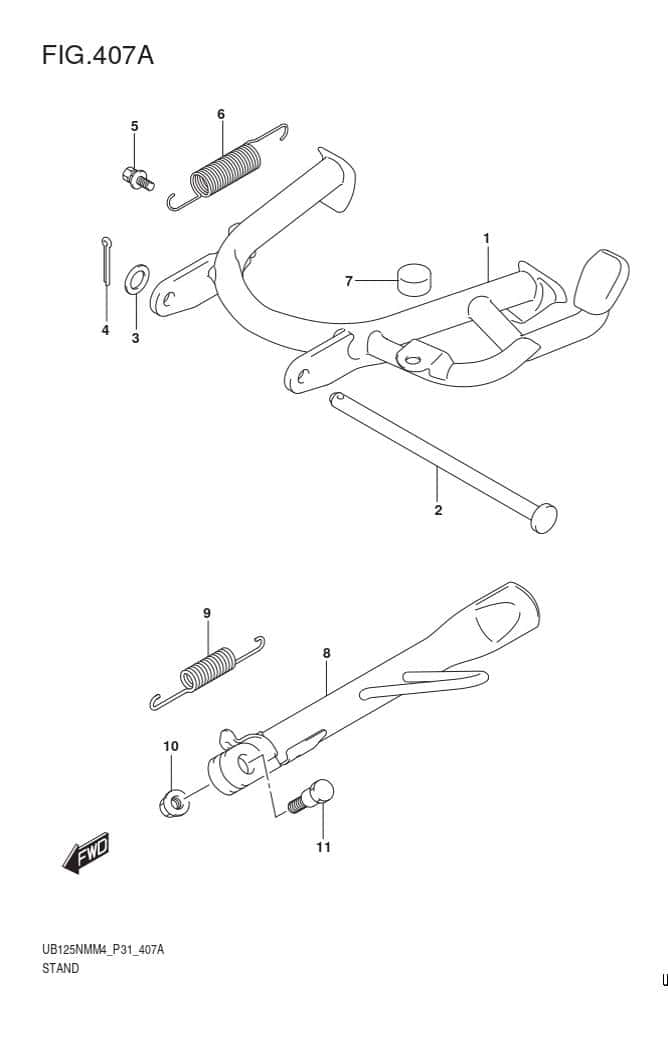

FIG.407A (1-D-5) STAND
FIG.415A (1-D-6) FOOTREST
FIG.438A (1-D-10) SIDE LEG SHIELD
FIG.440A (1-D-11) REAR LEG SHIELD
FIG.456A (1-D-14) HELMET BOX
FIG.454A (1-D-13) WINDSCREEN
FIG.427A (1-D-8) EVAP SYSTEM
FIG.435B (1-D-4) FRONT LEG SHIELD
FIG.445A (1-D-12) FRAME COVER
FIG.505A (1-E-9) SEAT
FIG.524A (1-E-11) STEERING STEM
FIG.530A (1-E-12) FRONT WHEEL
FIG.535A (1-E-13) FRONT CALIPER
FIG.537A (1-E-14) FRONT MASTER CYLINDER
FIG.545A (1-F-2) REAR SHOCK ABSORBER
FIG.550A (1-F-3) REAR WHEEL
FIG.460A (1-E-2) FRONT FENDER
FIG.463A (1-E-4) HANDLE COVER
FIG.467A (1-E-5) HANDLE LEVER
FIG.496A (1-E-8) LABEL

Ref No.	Part Number	Part Name	QTY	Price
1	42100-44K00-000	STAND, CENTER	1	₱ 1,147
2	42211-39J00-000	SHAFT, CTR STAND	1	₱ 101
3	42275-25J00-000	WASHER, CTR STAND	1	₱ 29
4	04111-3020A-000	PIN	1
5	42251-32G00-000	BOLT, CTR STAND SPRING	1	₱ 295
6	09443-17026-000	SPRING	1	₱ 82
7	42278-44K00-000	CUSHION	1	₱ 29
8	42310-02L10-000	STAND, PROP	1	₱ 359
9	42421-02L00-000	SPRING, PROP STAND INNER	1	₱ 50
10	08319-3110A-000	NUT	1	₱ 42
11	42341-27K00-000	BOLT, PROP STAND (10X33)	1	₱ 87
