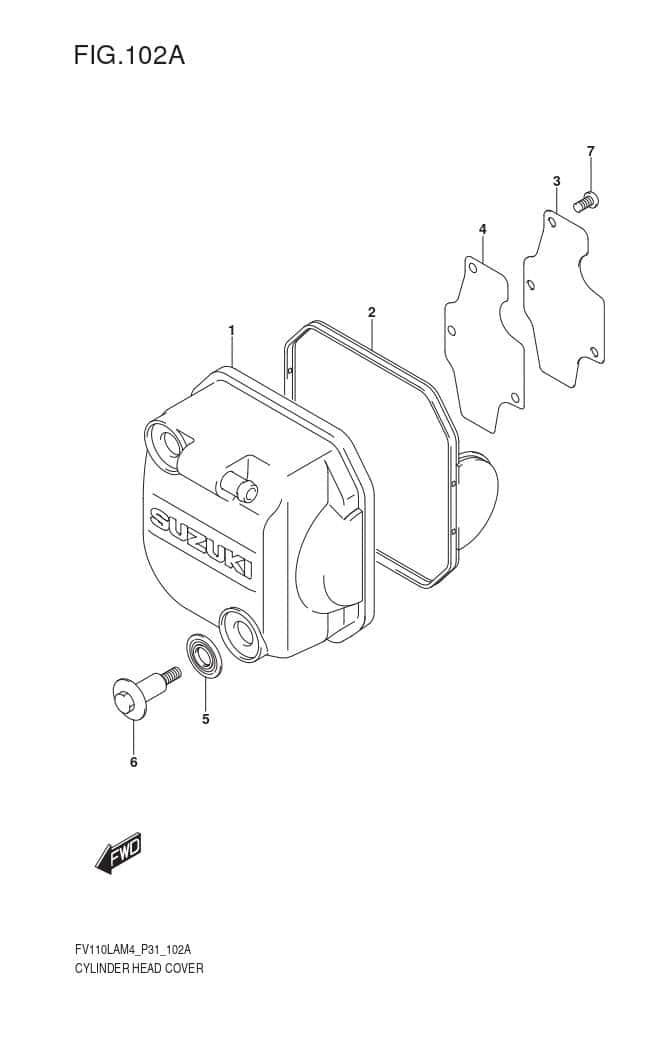

FIG.102A (1-B-2) CYLINDER HEAD COVER
FIG.108A (1-B-5) CRANKCASE
FIG.112A (1-B-6) CRANKCASE COVER
FIG.103A (1-B-3) CYLINDER HEAD
FIG.107A (1-B-4) CYLINDER
FIG.120A (1-B-7) CRANKSHAFT
FIG.126A (1-B-9) CAMSHAFT/VALVE
FIG.122A (1-B-8) STARTER CLUTCH
FIG.127A (1-B-10) CAM CHAIN
FIG.140A (1-B-11) THROTTLE BODY
FIG.155A (1-B-12) AIR CLEANER
FIG.163A (1-B-13) MUFFLER
FIG.170A (1-B-14) OIL PUMP

Ref No.	Part Number	Part Name	QTY	Price
1	11170-22J01-000	COVER, CYLINDER HEAD	1	₱ 934
2	11173-22J00-000	GASKET, CYL HEAD COVER	1	₱ 236
3	11176-22J00-000	PLATE, BREATHER	1	₱ 69
4	11177-22J00-000	GASKET, BREATHER PLATE	1	₱ 45
5	11191-27E70-000	WASHER, HEAD COVER BOLT 2 (10.6X25.5X1.6)	2	₱ 43
6	09119-06120-000	BOLT (L14.5)	2	₱ 48
7	02112-0510A-000	SCREW	3	₱ 47
