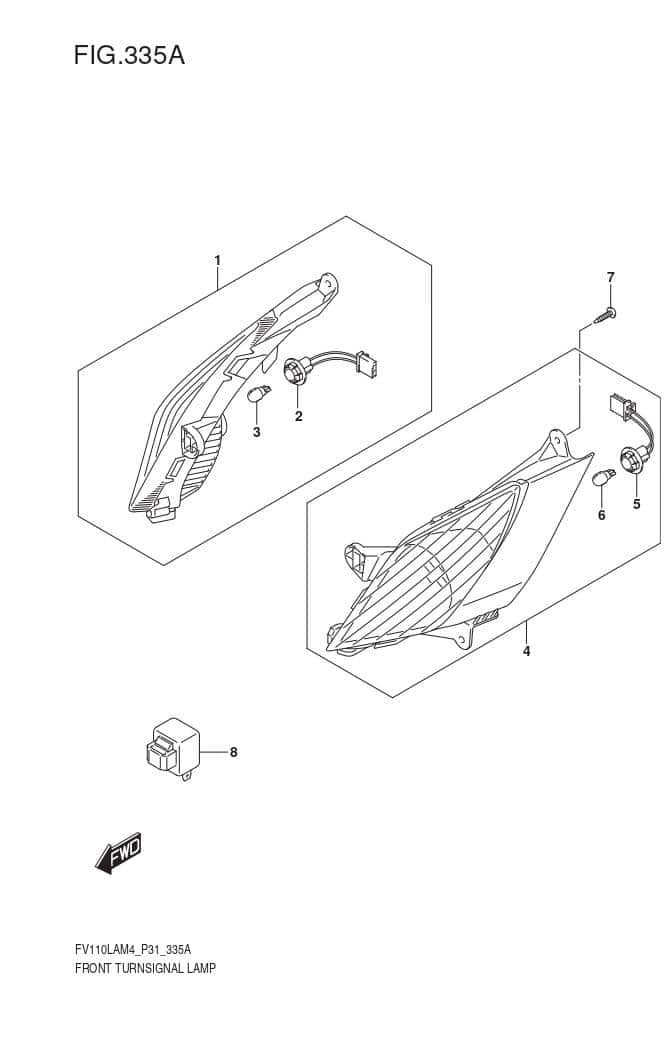

Ref No.	Part Number	Part Name	QTY	Price
1	35601-22J30-000	LAMP ASSY, FRONT TURNSIGNAL RH	1	₱ 476
2	35618-22J00-000	.CORD ASSY RH	1	₱ 157
3	09471-12203-000	.BULB (12V10W,T13)	1	₱ 116
4	35602-22J30-000	LAMP ASSY, FRONT TURNSIGNAL LH	1	₱ 481
5	35638-22J00-000	.CORD ASSY LH	1	₱ 158
6	09471-12203-000	.BULB (12V10W,T13)	1	₱ 116
7	03541-0416A-000	SCREW	4	₱ 31
8	38610-35491-000	RELAY ASSY, TURNSIGNAL	1	₱ 720
