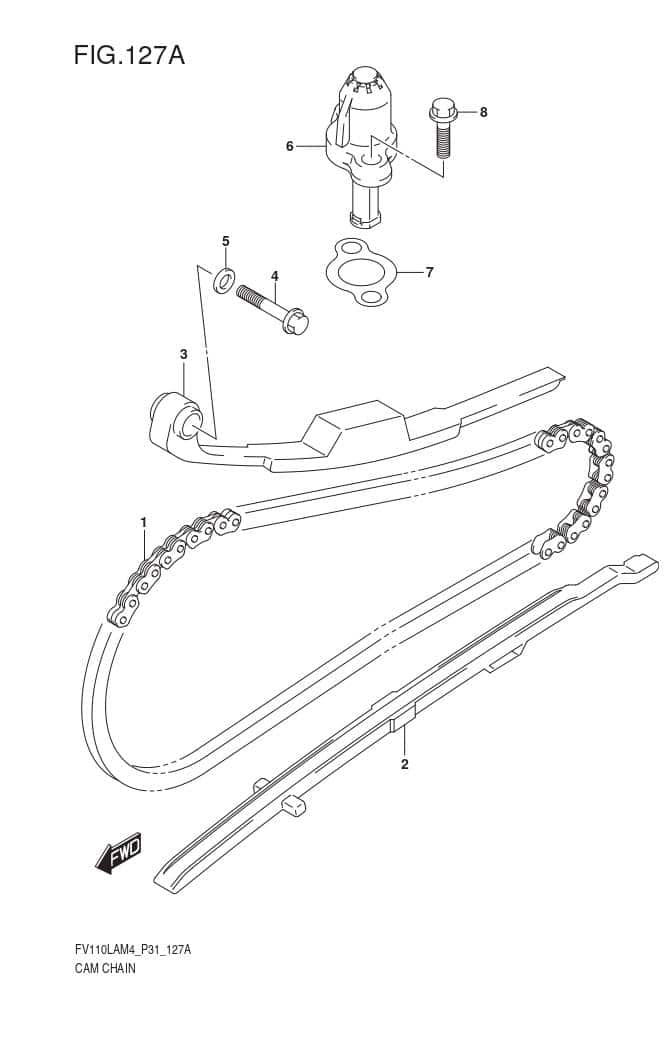

FIG.127A (1-B-10) CAM CHAIN
FIG.140A (1-B-11) THROTTLE BODY
FIG.155A (1-B-12) AIR CLEANER
FIG.163A (1-B-13) MUFFLER
FIG.170A (1-B-14) OIL PUMP

Ref No.	Part Number	Part Name	QTY	Price
1	12760C22J10L000	CHAIN, CAMSHAFT DRIVE	1
2	12771-40J00-000	GUIDE, CAM CHAIN	1	₱ 83
3	12811-09J00-000	TENSIONER, CAM CHAIN	1	₱ 416
4	09103-06247-000	BOLT (6X32)	1	₱ 83
5	09168-06004-000	GASKET (6.2X11X1.2)	1	₱ 45
6	12830-09J00-000	ADJUSTER ASSY, TENSIONER	1	₱ 806
7	12837-22J00-000	GASKET, TENSIONER ADJUSTER	1	₱ 36
8	01547-0620A-000	BOLT	2	₱ 26
