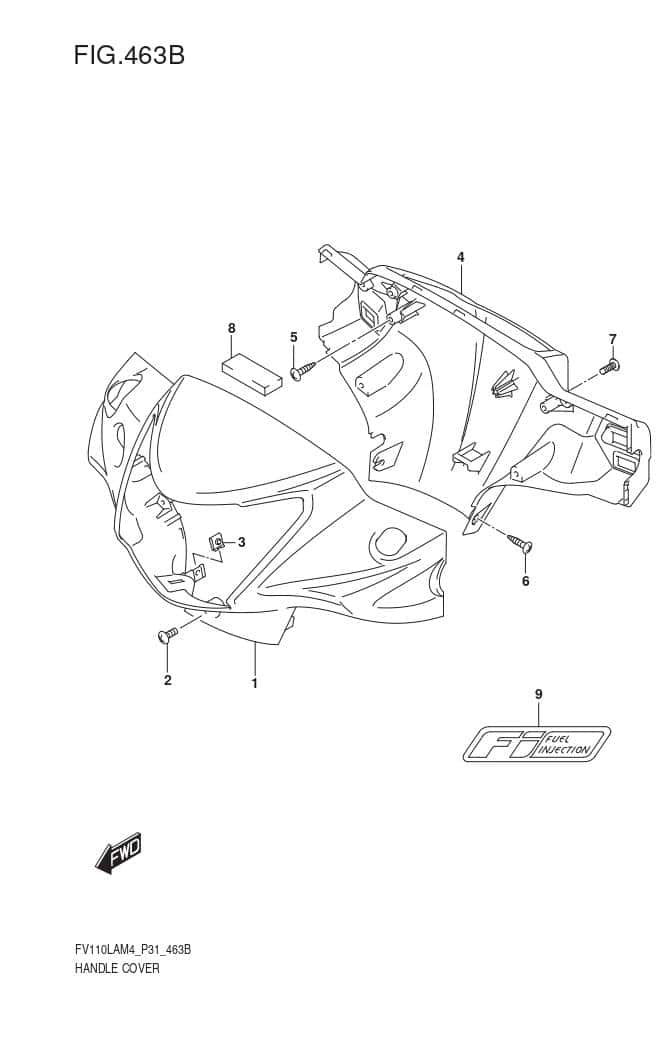

Smash FI - FIG.463B (1-E-9) HANDLE COVER (FV110LEM4 P31)

FIG.401A (1-D-7) FRAME
FIG.407A (1-D-8) STAND
FIG.415A (1-D-9) FOOTREST
FIG.420A (1-D-10) FUEL TANK
FIG.467A (1-E-10) HANDLE LEVER (FV110LAM4 P31)
FIG.467B (1-E-11) HANDLE LEVER (FV110LEM4 P31)
FIG.474A (1-E-12) REAR FENDER
FIG.478A (1-E-13) LUGGAGE BOX
FIG.496A (1-E-14) LABEL
FIG.505A (1-F-2) SEAT
FIG.521A (1-F-3) FRONT FORK DAMPER (FV110LAM4 P31)
FIG.524A (1-F-5) STEERING STEM (FV110LAM4 P31)
FIG.530A (1-F-7) FRONT WHEEL (FV110LAM4 P31)
FIG.535A (1-F-9) FRONT CALIPER (FV110LEM4 P31)
FIG.537A (1-F-10) FRONT MASTER CYLINDER (FV110LEM4 P31)
FIG.541A (1-F-11) REAR SWINGINGARM
FIG.542A (1-F-12) CHAIN CASE
FIG.460A (1-E-4) FRONT FENDER (FV110LAM4 P31)
FIG.460B (1-E-5) FRONT FENDER (FV110LEM4 P31)
FIG.462A (1-E-6) HANDLEBAR (FV110LAM4 P31)
FIG.463A (1-E-8) HANDLE COVER (FV110LAM4 P31)
FIG.463A (1-E-8) HANDLE COVER (FV110LAM4 P31)
FIG.435A (1-D-11) FRONT LEG SHIELD (FV110LAM4 P31)
FIG.435B (1-D-13) FRONT LEG SHIELD (FV110LEM4 P31)
FIG.445A (1-E-2) FRAME COVER (FV110LAM4 P31)
FIG.445B (1-E-3) FRAME COVER (FV110LEM4 P31)
FIG.550A (1-F-13) REAR WHEEL (FV110LAM4 P31)
FIG.530B (1-F-8) FRONT WHEEL (FV110LEM4 P31)
FIG.550B (1-G-2) REAR WHEEL (FV110LEM4 P31)
FIG.521A (1-E-11) FRONT FORK DAMPER (FW110D)
FIG.524A (1-E-13) STEERING STEM

Ref No.	Part Number	Part Name	QTY	Price
1	56311C22J00LYUA	COVER, HANDLE FRONT	1
2	02142-0512A-000	SCREW	1	₱ 30
3	09148-04019-000	NUT,HANDLE COVER SIDE	2	₱ 29
4	56321-22J00-291	COVER,HANDLE REAR	1	₱ 606
5	03541-0516A-000	SCREW	2	₱ 48
6	03541-0416B-000	SCREW	4	₱ 25
7	56316-45H10-000	SCREW,HANDLE COVER FR & RR	2	₱ 6
8	33652-35400-000	CUSHION , FRAME COVER	1	₱ 52
9	68281-09J30-BYC	EMBLEM, FI (SILVER GRAY)	1	₱ 10
