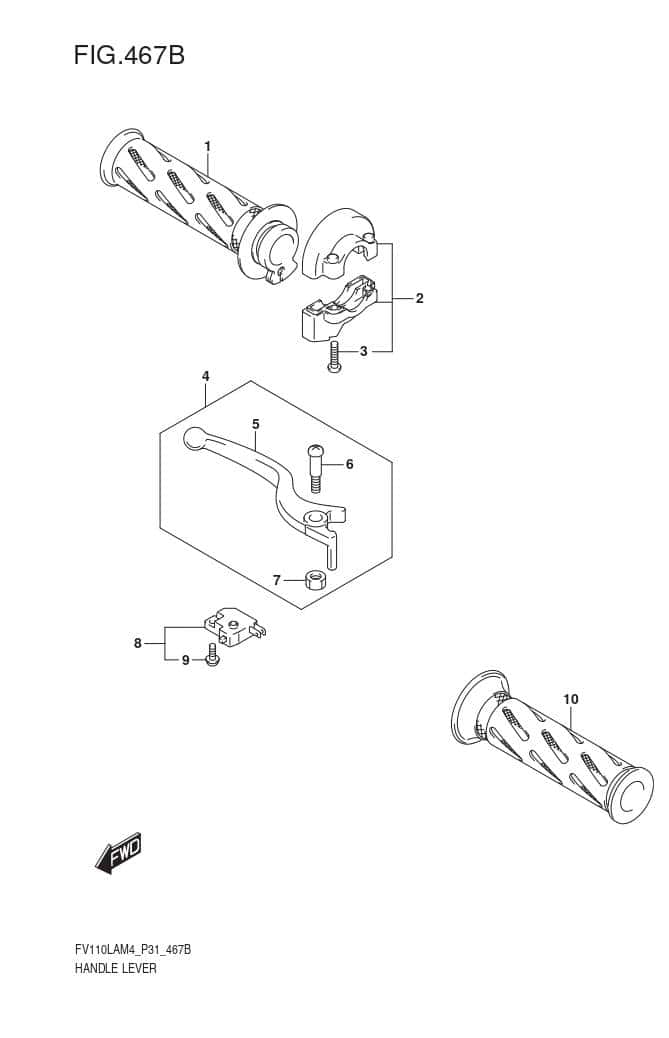

Smash FI - FIG.467B (1-E-11) HANDLE LEVER (FV110LEM4 P31)

FIG.401A (1-D-7) FRAME
FIG.407A (1-D-8) STAND
FIG.415A (1-D-9) FOOTREST
FIG.420A (1-D-10) FUEL TANK
FIG.467A (1-E-10) HANDLE LEVER (FV110LAM4 P31)
FIG.467B (1-E-11) HANDLE LEVER (FV110LEM4 P31)
FIG.474A (1-E-12) REAR FENDER
FIG.478A (1-E-13) LUGGAGE BOX
FIG.496A (1-E-14) LABEL
FIG.505A (1-F-2) SEAT
FIG.521A (1-F-3) FRONT FORK DAMPER (FV110LAM4 P31)
FIG.524A (1-F-5) STEERING STEM (FV110LAM4 P31)
FIG.530A (1-F-7) FRONT WHEEL (FV110LAM4 P31)
FIG.535A (1-F-9) FRONT CALIPER (FV110LEM4 P31)
FIG.537A (1-F-10) FRONT MASTER CYLINDER (FV110LEM4 P31)
FIG.541A (1-F-11) REAR SWINGINGARM
FIG.542A (1-F-12) CHAIN CASE
FIG.460A (1-E-4) FRONT FENDER (FV110LAM4 P31)
FIG.460B (1-E-5) FRONT FENDER (FV110LEM4 P31)
FIG.462A (1-E-6) HANDLEBAR (FV110LAM4 P31)
FIG.463A (1-E-8) HANDLE COVER (FV110LAM4 P31)
FIG.463A (1-E-8) HANDLE COVER (FV110LAM4 P31)
FIG.435A (1-D-11) FRONT LEG SHIELD (FV110LAM4 P31)
FIG.435B (1-D-13) FRONT LEG SHIELD (FV110LEM4 P31)
FIG.445A (1-E-2) FRAME COVER (FV110LAM4 P31)
FIG.445B (1-E-3) FRAME COVER (FV110LEM4 P31)
FIG.550A (1-F-13) REAR WHEEL (FV110LAM4 P31)
FIG.530B (1-F-8) FRONT WHEEL (FV110LEM4 P31)
FIG.550B (1-G-2) REAR WHEEL (FV110LEM4 P31)
FIG.521A (1-E-11) FRONT FORK DAMPER (FW110D)
FIG.524A (1-E-13) STEERING STEM

Ref No.	Part Number	Part Name	QTY	Price
1	57110-09GE0-000	GRIP, THROTTLE	1	₱ 239
2	57100-09G11-000	CASE ASSY, THROTTLE	1	₱ 150
3	02112-0520A-000	SCREW	2	₱ 55
4	57300-41HB0-000	LEVER ASSY, BRAKE	1	₱ 346
5	57421-41HB0-000	LEVER, BRAKE	1	₱ 239
6	57431-29C20-000	SCREW, BRAKE LEVER PIVOT 1 (6X28)	1	₱ 57
7	08319-2106A-000	NUT	1	₱ 82
8	57460-41H00-000	SWITCH ASSY, STOP	1	₱ 454
9	57465-17C00-000	SCREW, WITH WASHER (4X12)	1	₱ 56
10	57211-22D50-000	GRIP LH	1	₱ 143
