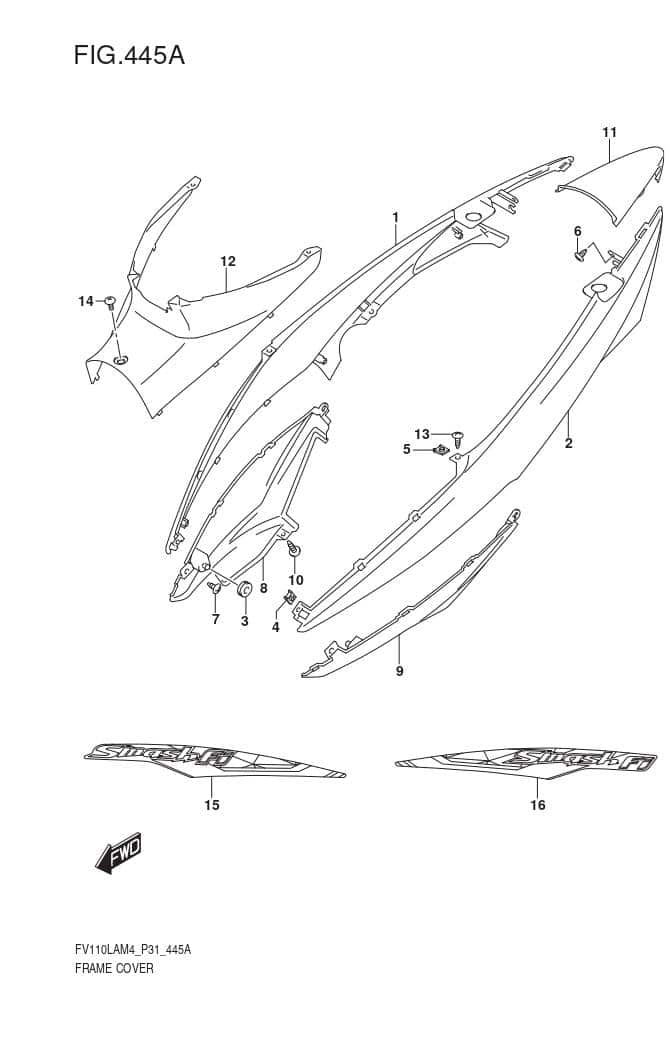

Smash FI - FIG.445A (1-E-2) FRAME COVER (FV110LAM4 P31)

Genuine Parts

FIG.102A (1-B-2) CYLINDER HEAD COVER
FIG.108A (1-B-5) CRANKCASE
FIG.112A (1-B-6) CRANKCASE COVER
FIG.103A (1-B-3) CYLINDER HEAD
FIG.107A (1-B-4) CYLINDER
FIG.120A (1-B-7) CRANKSHAFT
FIG.126A (1-B-9) CAMSHAFT/VALVE
FIG.122A (1-B-8) STARTER CLUTCH
FIG.127A (1-B-10) CAM CHAIN
FIG.140A (1-B-11) THROTTLE BODY
FIG.155A (1-B-12) AIR CLEANER
FIG.163A (1-B-13) MUFFLER
FIG.170A (1-B-14) OIL PUMP

FIG.301A (1-C-8) STARTING MOTOR
FIG.303A (1-C-9) MAGNETO
FIG.310A (1-C-10) BATTERY
FIG.312A (1-C-11) ELECTRICAL
FIG.330A (1-C-12) SPEEDOMETER (FV110LAM4 P31)
FIG.333A (1-C-14) HEADLAMP
FIG.335A (1-D-2) FRONT TURNSIGNAL LAMP
FIG.339A (1-D-3) REAR COMBINATION LAMP
FIG.350A (1-D-4) WIRING HARNESS (FV110LAM4 P31)
FIG.352A (1-D-6) LOCK SET
FIG.172A (1-C-2) FUEL PUMP

FIG.401A (1-D-7) FRAME
FIG.407A (1-D-8) STAND
FIG.415A (1-D-9) FOOTREST
FIG.420A (1-D-10) FUEL TANK
FIG.467A (1-E-10) HANDLE LEVER (FV110LAM4 P31)
FIG.467B (1-E-11) HANDLE LEVER (FV110LEM4 P31)
FIG.474A (1-E-12) REAR FENDER
FIG.478A (1-E-13) LUGGAGE BOX
FIG.496A (1-E-14) LABEL
FIG.505A (1-F-2) SEAT
FIG.521A (1-F-3) FRONT FORK DAMPER (FV110LAM4 P31)
FIG.524A (1-F-5) STEERING STEM (FV110LAM4 P31)
FIG.530A (1-F-7) FRONT WHEEL (FV110LAM4 P31)
FIG.535A (1-F-9) FRONT CALIPER (FV110LEM4 P31)
FIG.537A (1-F-10) FRONT MASTER CYLINDER (FV110LEM4 P31)
FIG.541A (1-F-11) REAR SWINGINGARM
FIG.542A (1-F-12) CHAIN CASE
FIG.460A (1-E-4) FRONT FENDER (FV110LAM4 P31)
FIG.460B (1-E-5) FRONT FENDER (FV110LEM4 P31)
FIG.462A (1-E-6) HANDLEBAR (FV110LAM4 P31)
FIG.463A (1-E-8) HANDLE COVER (FV110LAM4 P31)
FIG.463A (1-E-8) HANDLE COVER (FV110LAM4 P31)
FIG.435A (1-D-11) FRONT LEG SHIELD (FV110LAM4 P31)
FIG.435B (1-D-13) FRONT LEG SHIELD (FV110LEM4 P31)
FIG.445A (1-E-2) FRAME COVER (FV110LAM4 P31)
FIG.445B (1-E-3) FRAME COVER (FV110LEM4 P31)
FIG.550A (1-F-13) REAR WHEEL (FV110LAM4 P31)
FIG.530B (1-F-8) FRONT WHEEL (FV110LEM4 P31)
FIG.550B (1-G-2) REAR WHEEL (FV110LEM4 P31)
FIG.521A (1-E-11) FRONT FORK DAMPER (FW110D)
FIG.524A (1-E-13) STEERING STEM

Ref No.	Part Number	Part Name	QTY	Price
1	47111C22J20LPGZ	COVER, FRAME RH	1
2	47211C22J20LPGZ	COVER, FRAME LH	1
3	48169-12JA0-000	CUSHION	2	₱ 85
4	09148-05045-000	NUT	2	₱ 78
5	09148-05045-000	NUT	2	₱ 78
6	03541-0412A-000	SCREW	2	₱ 25
7	03541-0512A-000	SCREW	4
8	47511-22J10-291	COVER,FRAME UNDER,R	1	₱ 474
9	47611-22J10-291	COVER,FRAME UNDER,L	1	₱ 442
10	03541-0516A-000	SCREW	4	₱ 48
11	47711-22J10-291	COVER,FRAME REAR	1	₱ 372
12	47411-22J10-291	COVER,FRAME FRONT	1	₱ 368
13	03541-0516A-000	SCREW	2	₱ 48
14	48218-10J00-000	SCREW,FRAME COVER FRONT LOWER	1	₱ 28
15	68145C22JQ0LYUA	TAPE, FRAME COVER RH	1
16	68145C22JQ0LYUA	TAPE, FRAME COVER LH	1
