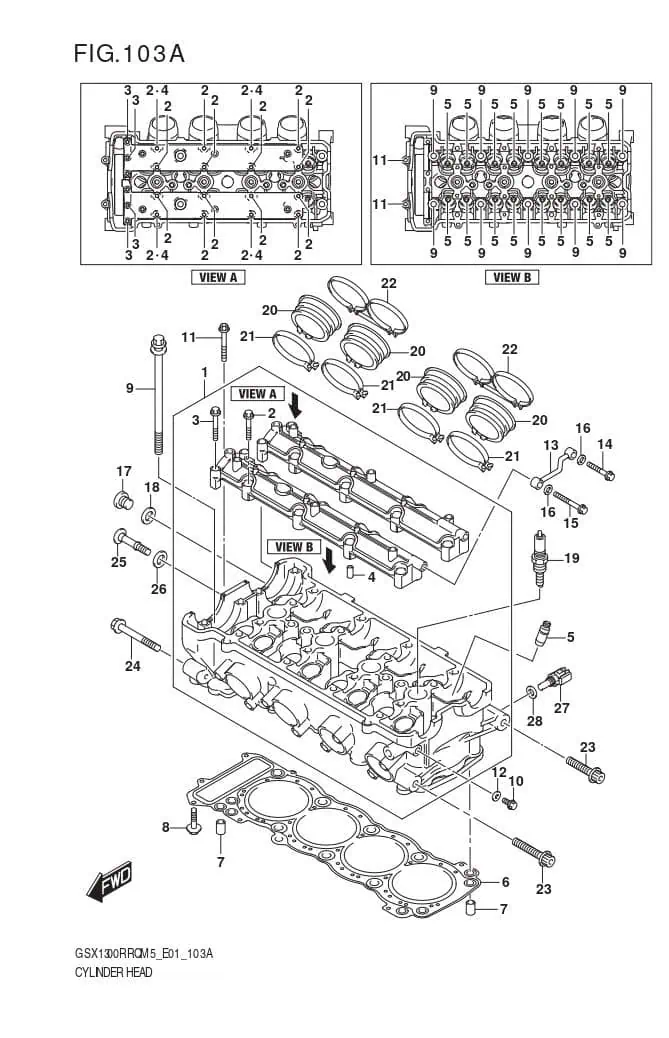

Ref No. |
Part Number |
Part Name |
QTY |
Price |
|---|---|---|---|---|
1 |
11100-10L00-000 |
HEAD ASSY,CYLINDER |
1 |
₱ 96,110 |
2 |
09103-06266-000 |
BOLT |
16 |
₱ 62 |
3 |
09103-06293-000 |
BOLT |
4 |
₱ 104 |
4 |
09206-08007-000 |
PIN |
4 |
₱ 104 |
5 |
11115-15H70-000 |
GUIDE,VALVE |
16 |
₱ 914 |
6 |
11141-15H00-000 |
GASKET,CYLINDER HEAD |
1 |
₱ 2,998 |
7 |
04211-11169-000 |
PIN |
2 |
₱ 56 |
8 |
01550-0630A-000 |
BOLT |
1 |
₱ 70 |
9 |
11117-15H00-000 |
BOLT,CYLINDER HEAD |
10 |
₱ 456 |
10 |
01550-0612A-000 |
BOLT |
1 |
₱ 12 |
11 |
07120-0655B-000 |
BOLT |
2 |
₱ 136 |
12 |
09168-06023-000 |
GASKET (5.8X13X1.2) |
1 |
|
13 |
11131-33E01-000 |
PIPE,OIL |
1 |
₱ 1,305 |
14 |
01550-0635A-000 |
BOLT |
1 |
|
15 |
01550-0645A-000 |
BOLT (6X45) |
1 |
|
16 |
08322-0106A-000 |
WASHER |
2 |
₱ 59 |
17 |
09248-16012-000 |
PLUG (16X8) |
1 |
₱ 122 |
18 |
09168-16009-000 |
GASKET (16X22X0.8) |
1 |
|
19 |
09482-00558-000 |
PLUG,SPARK |
1 |
₱ 832 |
20 |
13111-10L00-000 |
PIPE,INTAKE |
4 |
₱ 414 |
21 |
09402-60208-000 |
CLAMP |
4 |
₱ 135 |
22 |
13170-08J00-000 |
CLAMP, INTAKE PIPE |
2 |
₱ 663 |
23 |
09106-10069-000 |
BOLT (10X45) |
2 |
₱ 177 |
24 |
09106-10084-000 |
BOLT (10X60) |
2 |
₱ 214 |
25 |
11161-33E00-000 |
BOLT, CYL HEAD SIDE FACE |
1 |
₱ 272 |
26 |
11191-13E00-000 |
WASHER,HEAD COVER |
1 |
₱ 124 |
27 |
13650-49X00-000 |
SENSOR, WATER TEMP |
1 |
₱ 2,549 |
28 |
09168-12017-000 |
GASKET,12X17X1 |
1 |
₱ 63 |
–
