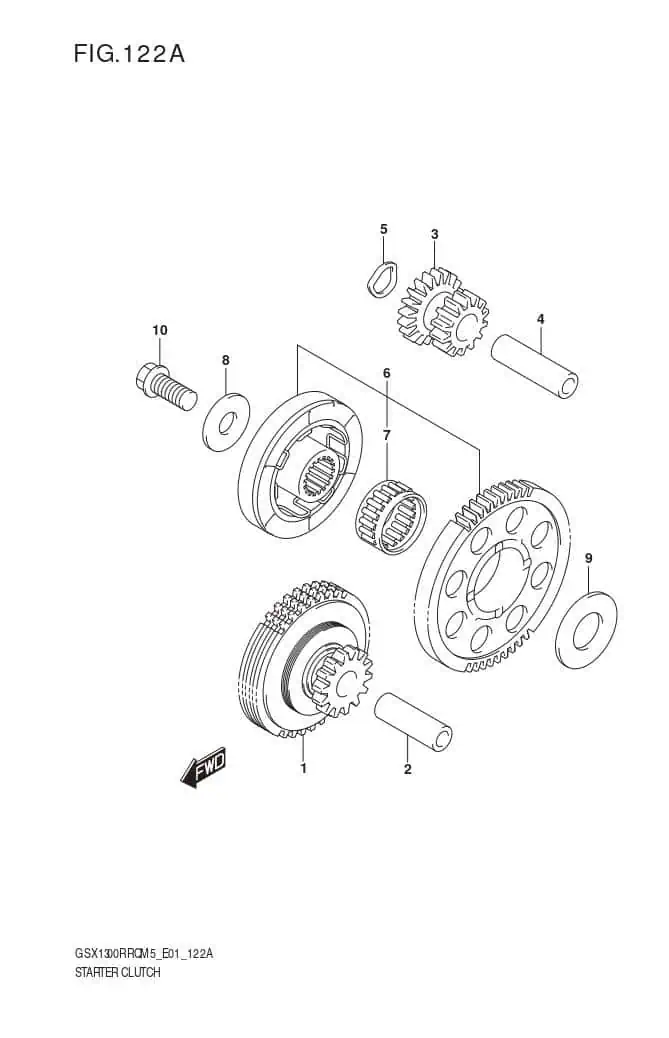

Ref No.	Part Number	Part Name	QTY	Price
1	12600-24F00-000	LIMITER ASSY, STARTER IDLE	1	₱ 5,994
2	12615-24F00-000	PIN, STARTER IDLE GEAR NO.1	1	₱ 262
3	12612-24F00-000	GEAR, STARTER IDLE NO.2	1	₱ 1,640
4	12151-05200-000	PIN, PISTON	1	₱ 363
5	09164-14008-000	WASHER	1	₱ 87
6	12600-24870-000	CLUTCH SET,STARTER	1	₱ 12,367
7	09263-28040-000	.BEARING	1	₱ 1,233
8	08211-10285-000	WASHER	1	₱ 105
9	08211-20403-000	WASHER	1	₱ 172
10	09103-10189-000	BOLT (10X23)	1
