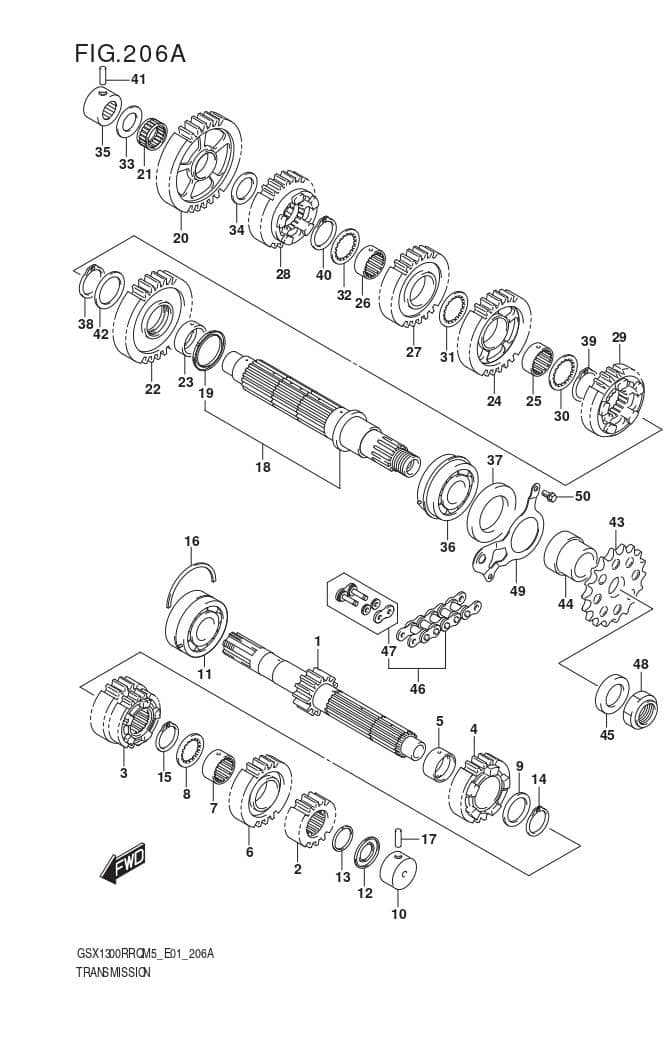

Ref No. |
Part Number |
Part Name |
QTY |
Price |
|---|---|---|---|---|
1 |
24120-10L00-000 |
SHAFT,CNTR |
1 |
₱ 8,916 |
2 |
24221-15H00-000 |
GEAR, 2ND DRIVE (NT:16) |
1 |
₱ 2,925 |
3 |
24231-15H00-000 |
GEAR, 3RD & 4TH DRIVE |
1 |
₱ 5,175 |
4 |
24251-15H01-000 |
GEAR, 5TH DRIVE (NT:22) |
1 |
₱ 4,163 |
5 |
24252-24F20-000 |
BUSH,5TH DRIVE GEAR |
1 |
₱ 1,692 |
6 |
24261-10L00-000 |
GEAR,6TH DRIVE |
1 |
₱ 3,219 |
7 |
24262-24F20-000 |
BUSH,6TH DRIVE GEAR |
1 |
₱ 849 |
8 |
24263-10L00-000 |
WASHER,6TH DRIVE GEAR |
1 |
₱ 231 |
9 |
09181-27014-000 |
SHIM (27X36X2.5) |
1 |
₱ 211 |
10 |
09263-20117-000 |
BEARING,CNTR SHAFT,L |
1 |
₱ 1,759 |
11 |
09267-25012-000 |
BEARING (25X62X25.4) |
1 |
₱ 6,452 |
12 |
09285-20006-000 |
OIL SEAL (20X31.2X2.7) |
1 |
₱ 181 |
13 |
09380-27004-000 |
CIRCLIP |
1 |
₱ 155 |
14 |
09380-27006-000 |
CIRCLIP |
1 |
₱ 112 |
15 |
09380-27006-000 |
CIRCLIP |
1 |
₱ 112 |
16 |
09390-62012-000 |
C RING |
1 |
₱ 298 |
17 |
04221-07209-000 |
PIN |
1 |
₱ 79 |
18 |
24130-10L00-000 |
SHAFT,DRIVE |
1 |
₱ 5,968 |
19 |
24136-48G01-000 |
.RING, DRIVE SHAFT FRICTION |
1 |
₱ 861 |
20 |
24311-10L00-000 |
GEAR,1ST DRIVEN |
1 |
₱ 3,757 |
21 |
09263-24030-000 |
BEARING (24X28X13) |
1 |
₱ 591 |
22 |
24321-15H00-000 |
GEAR, 2ND DRIVEN (NT:31) |
1 |
₱ 4,243 |
23 |
24322-48G00-000 |
BUSH, 2ND DRIVEN GEAR |
1 |
₱ 713 |
24 |
24331-15H00-000 |
GEAR, 3RD DRIVEN (NT:29) |
1 |
₱ 4,243 |
25 |
24332-24F20-000 |
BUSH,3RD DRIVEN GEAR |
1 |
₱ 849 |
26 |
24332-24F20-000 |
BUSH,3RD DRIVEN GEAR |
1 |
₱ 849 |
27 |
24341-15H00-000 |
GEAR, 4TH DRIVEN (NT:27) |
1 |
₱ 4,243 |
28 |
24351-10L00-000 |
GEAR,5TH DRIVEN |
1 |
₱ 5,070 |
29 |
24361-15H00-000 |
GEAR, 6TH DRIVEN (NT:24) |
1 |
₱ 4,340 |
30 |
09167-30008-000 |
LOCK WASHER |
1 |
₱ 211 |
31 |
09167-30008-000 |
LOCK WASHER |
1 |
₱ 211 |
32 |
09167-30008-000 |
LOCK WASHER |
1 |
₱ 211 |
33 |
09181-20251-000 |
SHIM (20X34X1) |
1 |
₱ 116 |
34 |
09181-24005-000 |
SHIM (24X34X1) |
1 |
₱ 141 |
35 |
09263-20118-000 |
BEARING,DRIVE SHAFT,R |
1 |
₱ 1,759 |
36 |
09267-30011-000 |
BEARING (30X62X23.8) |
1 |
₱ 6,872 |
37 |
09283-42018-000 |
OIL SEAL (42X62X7) |
1 |
₱ 1,501 |
38 |
09380-30009-000 |
CIRCLIP |
1 |
₱ 141 |
39 |
09380-30009-000 |
CIRCLIP |
1 |
₱ 141 |
40 |
09380-30009-000 |
CIRCLIP |
1 |
₱ 141 |
41 |
04221-07209-000 |
PIN |
1 |
₱ 79 |
42 |
08211-30405-000 |
WASHER |
1 |
₱ 139 |
43 |
27511-15H00-000 |
SPROCKET,ENGINE |
1 |
₱ 3,169 |
44 |
27531-15H00-000 |
SPACER, ENGINE SPROCKET NO.1 |
1 |
₱ 797 |
45 |
27532-15H00-000 |
SPACER, ENGINE SPROCKET NO.2 |
1 |
₱ 342 |
46 |
27600-24F70-114 |
CHAIN ASSY,DRIVE |
1 |
₱ 18,515 |
47 |
27620-24F70-000 |
.JOINT SET CHAIN |
1 |
₱ 507 |
48 |
09159-22008-000 |
NUT |
1 |
₱ 1,234 |
49 |
24751-10L00-000 |
RETAINER,CL PUSH ROD OIL SEAL |
1 |
|
50 |
09103-06236-000 |
BOLT (6X12) |
1 |
₱ 112 |
–
