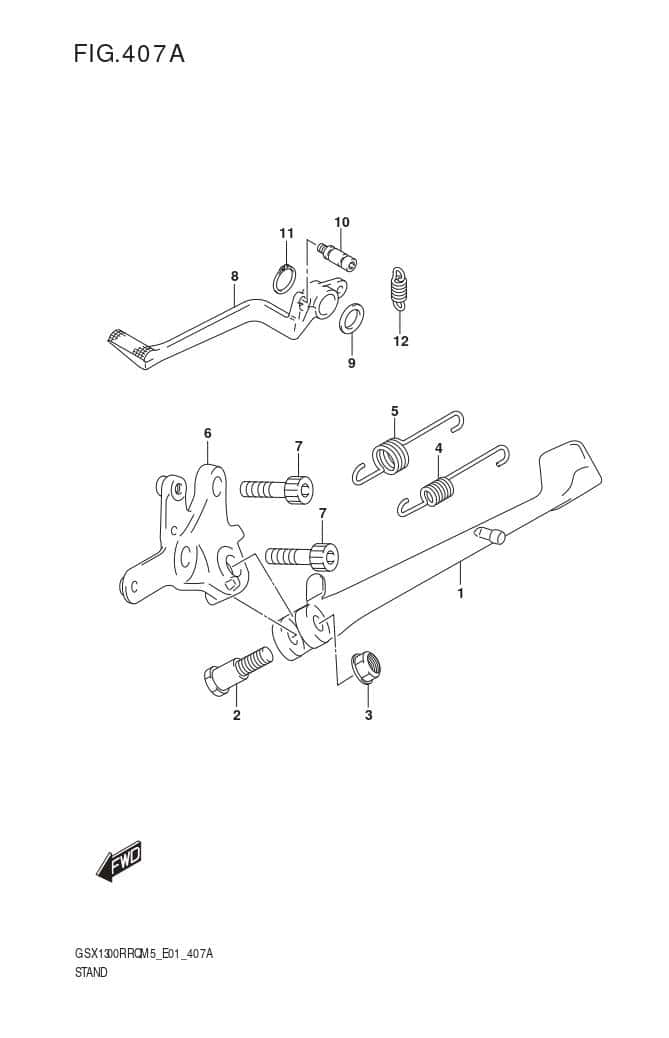

Ref No.	Part Number	Part Name	QTY	Price
1	42310-24F00-000	STAND,PROP	1	₱ 3,648
2	09111-10059-000	BOLT,10X21	1	₱ 194
3	09159-10103-000	NUT	1	₱ 82
4	09443-14068-000	SPRING	1	₱ 232
5	09443-19015-000	SPRING	1	₱ 244
6	42330-24F01-000	BRACKET, PROP STAND	1	₱ 3,472
7	09106-12003-000	BOLT (12X35)	2	₱ 197
8	43110-10L00-000	PEDAL,BRAKE	1	₱ 2,751
9	09160-16057-000	WASHER,BRAKE PEDAL	1	₱ 158
10	43561-24F00-000	HOOK, RETURN SPRING	1	₱ 338
11	08331-31169-000	CIRCLIP	1	₱ 57
12	09443-13032-000	SPRING	1	₱ 118
