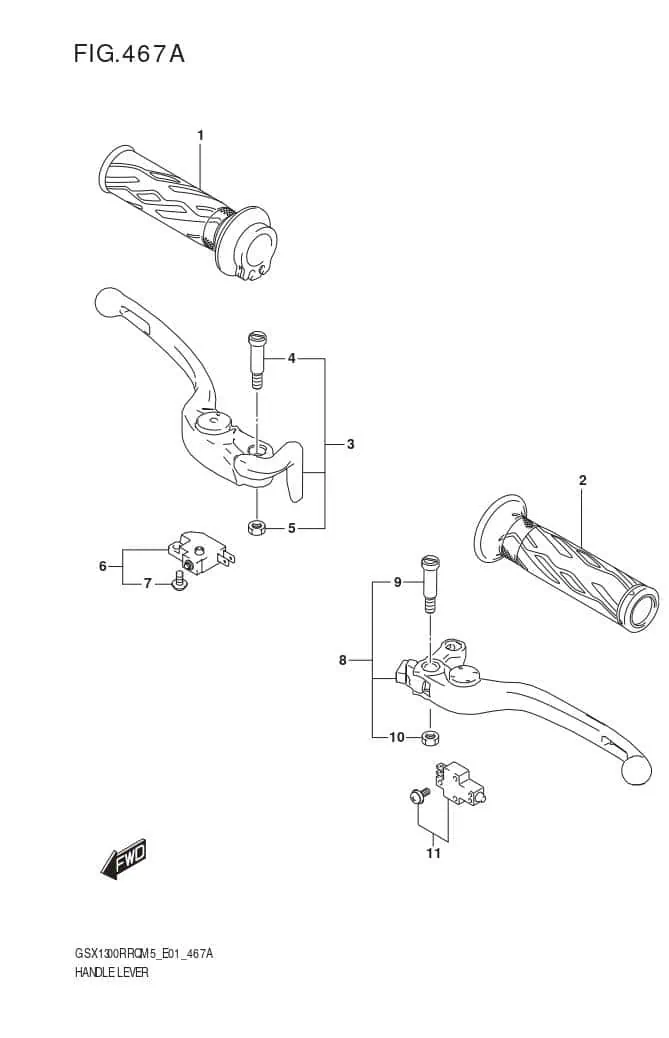

Ref No.	Part Number	Part Name	QTY	Price
1	57110-21H01-000	GRIP,THROTTLE	1	₱ 634
2	57211-21H00-000	GRIP,L	1	₱ 394
3	57300-10L00-000	LEVER ASSY,BRAKE	1	₱ 4,425
4	57431-29G00-000	.BOLT, PIVOT	1	₱ 243
5	08319-2106A-000	NUT	1	₱ 82
6	57460-14J00-000	SWITCH ASSY, STOP	1	₱ 1,035
7	57465-17C00-000	SCREW	1	₱ 56
8	57500-10L00-000	LEVER ASSY,CLUTCH	1	₱ 3,992
9	57431-10L00-000	.BOLT,LEVER PIVOT	1	₱ 341
10	08319-2106A-000	NUT	1	₱ 82
11	57560-02FA0-000	SWITCH ASSY,CLUTCH	1	₱ 669
