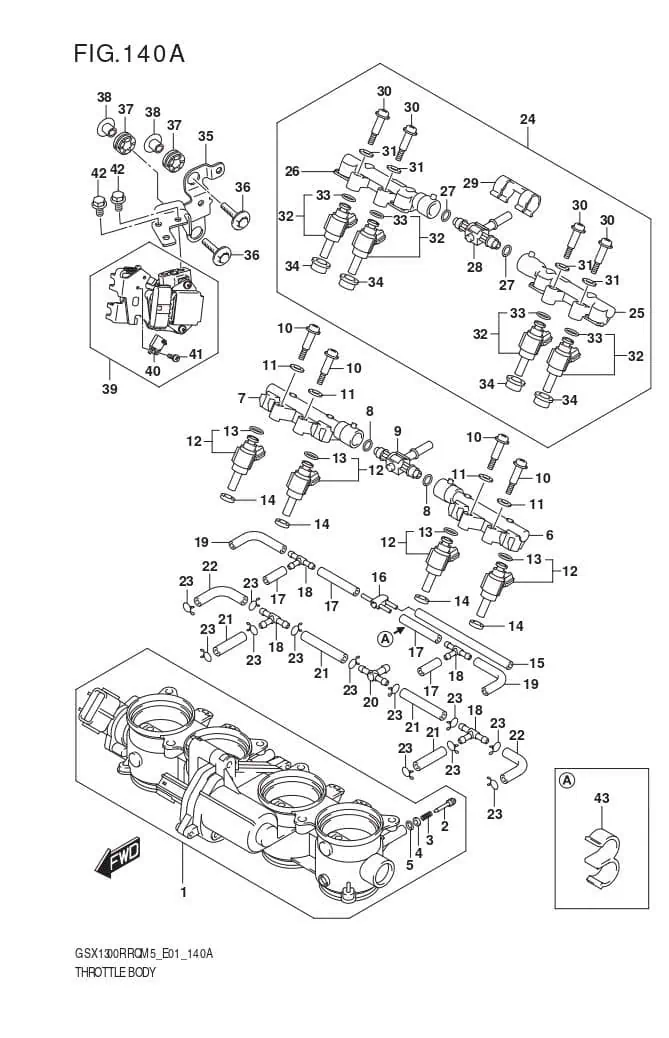

Ref No. |
Part Number |
Part Name |
QTY |
Price |
|---|---|---|---|---|
1 |
13405-10L00-000 |
BODY ASSY,THROTTLE |
1 |
₱ 45,325 |
2 |
13269-33E00-000 |
.SCREW |
4 |
₱ 269 |
3 |
13268-48700-000 |
.SPRING |
4 |
₱ 115 |
4 |
13606-47A00-000 |
.WASHER |
4 |
₱ 69 |
5 |
13295-29901-000 |
.ORING, PILOT AIR SCREW |
4 |
₱ 123 |
6 |
13471-10L00-000 |
DELIVERY PIPE |
1 |
₱ 1,069 |
7 |
13472-10L00-000 |
DELIVERY PIPE |
1 |
₱ 1,069 |
8 |
13374-32G00-000 |
.O-RING |
2 |
₱ 110 |
9 |
13473-10L00-000 |
NIPPLE ASSY |
1 |
₱ 1,349 |
10 |
13601-29G00-000 |
SCREW |
4 |
₱ 86 |
11 |
13602-29G01-000 |
PACKING |
4 |
₱ 82 |
12 |
15710-14J00-000 |
INJECTOR ASSY |
4 |
₱ 7,072 |
13 |
15717-58B00-000 |
.O RING |
4 |
₱ 399 |
14 |
15722-14J00-000 |
SEAL |
4 |
₱ 286 |
15 |
13683-01H01-000 |
HOSE |
1 |
₱ 272 |
16 |
13471-18H00-000 |
JOINT |
1 |
₱ 216 |
17 |
13683-10F61-000 |
HOSE |
2 |
₱ 536 |
18 |
13685-02FA0-000 |
NIPPLE |
4 |
₱ 146 |
19 |
13681-39F00-070 |
HOSE |
2 |
₱ 113 |
20 |
13685-04F10-000 |
NIPPLE |
1 |
₱ 255 |
21 |
13683-04K50-000 |
HOSE |
1 |
₱ 522 |
22 |
13683-10L00-000 |
HOSE |
4 |
₱ 109 |
23 |
13671-12C00-000 |
CLIP |
2 |
₱ 105 |
24 |
15900-10L00-000 |
BODY ASSY,2ND INJECTOR |
12 |
₱ 14,165 |
25 |
13471-10L00-000 |
DELIVERY PIPE |
1 |
₱ 1,069 |
26 |
13472-10L00-000 |
DELIVERY PIPE |
1 |
₱ 1,069 |
27 |
13374-32G00-000 |
.O-RING |
1 |
₱ 110 |
28 |
13473-10L00-000 |
NIPPLE ASSY |
2 |
₱ 1,349 |
29 |
13474-17K00-000 |
.CLIP |
1 |
₱ 522 |
30 |
13601-29G00-000 |
SCREW |
1 |
₱ 86 |
31 |
13602-29G01-000 |
PACKING |
4 |
₱ 82 |
32 |
15710-17K10-000 |
.INJECTOR ASSY |
4 |
₱ 7,910 |
33 |
15717-58B00-000 |
.O RING |
4 |
₱ 399 |
34 |
15722-14J00-000 |
SEAL |
16 |
₱ 286 |
35 |
13571-10L00-000 |
BRACKET,ACCEL SENSOR |
4 |
₱ 444 |
36 |
09116-06185-000 |
BOLT (6X30) |
1 |
₱ 76 |
37 |
09320-10055-000 |
CUSHION |
2 |
₱ 126 |
38 |
09180-06319-000 |
SPACER (6.5X10X11.6) |
2 |
₱ 155 |
39 |
13500-10L00-000 |
BODY ASSY,ACCELERATOR |
2 |
₱ 18,515 |
40 |
13550-10L00-000 |
.SWITCH,CRS CONT CANCEL |
1 |
|
41 |
13601-10L00-000 |
.SCREW |
1 |
|
42 |
01550-0612A-000 |
BOLT, FRONT FENDER BRACKET |
2 |
₱ 12 |
43 |
09408-00200-000 |
CLIP |
1 |
₱ 67 |
