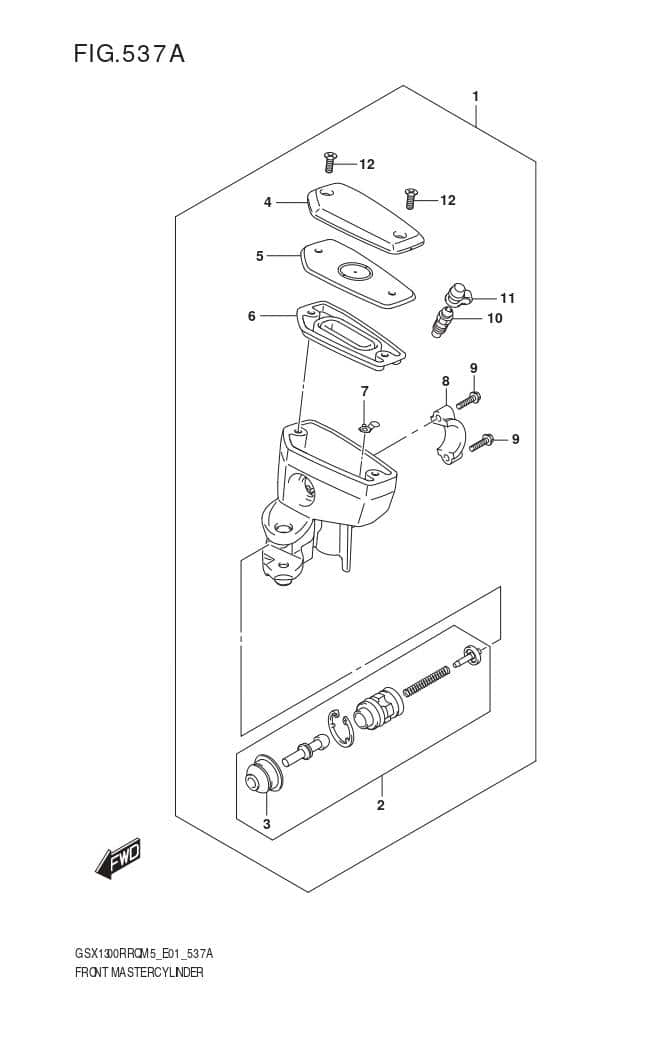

FIG.537A (1-G-5) FRONT MASTER CYLINDER
FIG.539A (1-G-6) CLUTCH MASTER CYLINDER
FIG.541A (1-G-7) REAR SWINGINGARM
FIG.543A (1-G-8) REAR CUSHION LEVER
FIG.550A (1-G-9) REAR WHEEL
FIG.555A (1-G-10) REAR CALIPER
FIG.558A (1-G-11) REAR MASTER CYLINDER

Ref No.	Part Number	Part Name	QTY	Price
1	59600-10L40-000	CYLINDER ASSY,FRONT MASTER	1
2	59600-10880-000	.PISTON CUP SET	1
3	59669-23H20-000	..BOOT	1	₱ 265
4	57437-23H00-000	CAP,RESERVOIR	1	₱ 952
5	57437-23H00-000	.PLATE	1	₱ 221
6	59667-23H10-000	.DIAPHRAGM,R	1
7	59664-32F00-000	.PROTECTOR	1	₱ 158
8	59671-36500-000	HOLDER, MASTER CYLINDER	1	₱ 82
9	59675-10L00-000	.SCREW	2	₱ 142
10	59121-01A00-000	.BLEEDER	1	₱ 138
11	59122-46H00-000	.CAP	1	₱ 114
12	69689-49300-000	SCREW, RESERVOIR CAP	2	₱ 27
